A compact and powerful combined semi-wet vacuum pump and amalgam separator suitable for one surgery, compliant with regulations and with a proven track record.

  • Over 99% amalgam separation rate
  • Cleaning system/spare collection canister included as standard
  • Easy to maintain when used with Dürr Orotol
  • 14g (VSA 300S), 25g (VS 600)

Operators = Number of treatment stations with simultaneous operation

Rooms = Number of stations that can be connected with simultaneity factor 60%

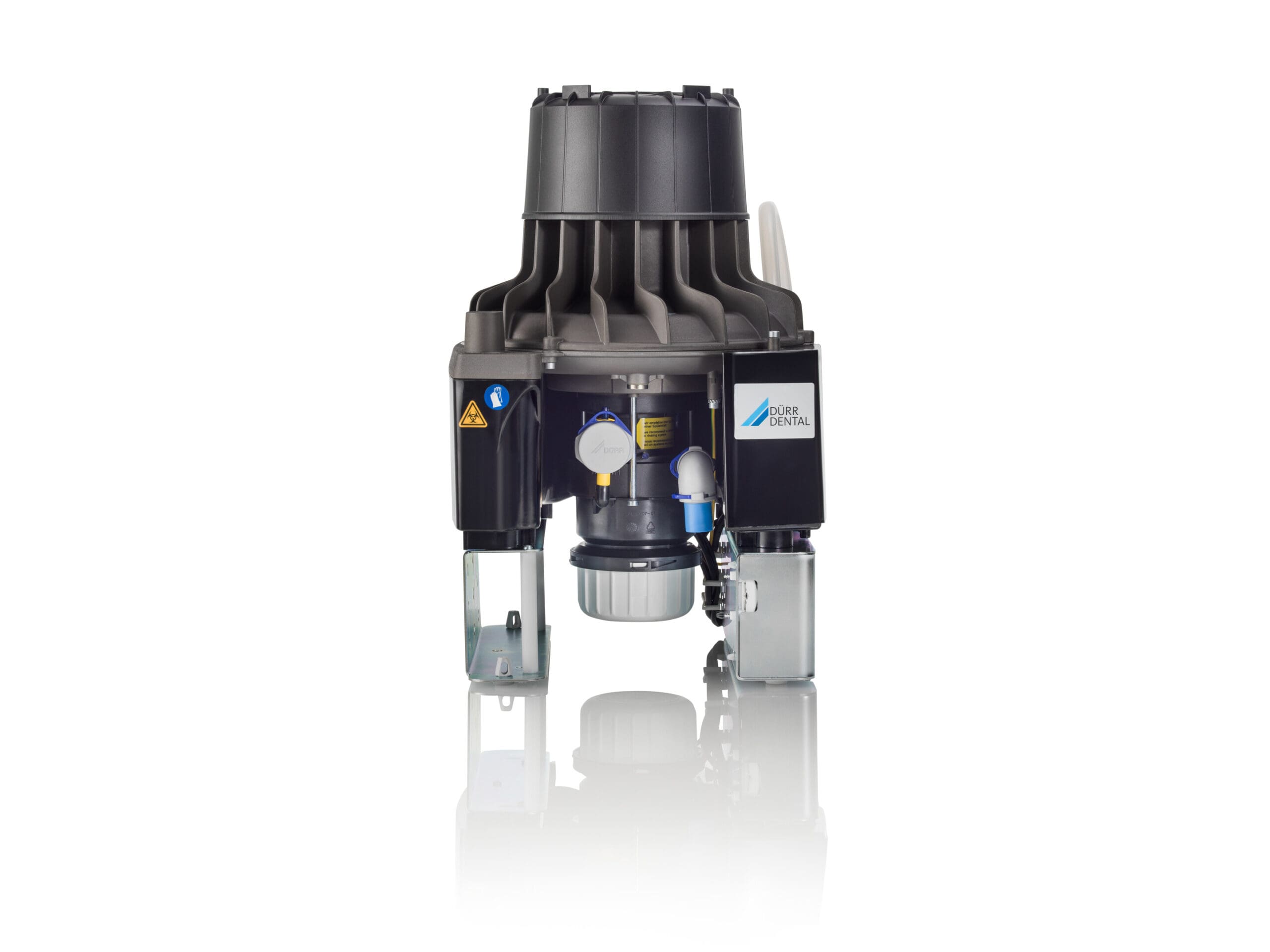

The Durr VSA300 S Suction Pump is a fantastic solution for any practice looking for a reliable and robust single surgery suction pump.  With legislation in place stating the need for amalgam separation, the Durr VSA300 S Suction Pump’s fully integrated centrifuge separator is a must.  Typically this unit will be located within a base unit in the surgery cabinetry range and can be forgotten about until an alarm sounds from its user friendly interface.

Technical data:

  • Voltage (V 1~) 230
  • Frequency (Hz) 50/60
  • Current consumption (A) 2.9/3.7
  • Power (kW) 0.58/0.8
  • Speed (rpm) 2,850
  • Vacuum (mbar) 180
  • Cyclic duration factor (S1) 100 %
  • Max. fluid flow rate (l/min) 4
  • Noise level dB(A) approx. 63 – 65, with housing approx. 54 – 56
  • Dimensions (H x W x D cm) 37 x 31 x 31
    51 x 36 x 36 (with housing)
  • Weight (kg) 12.5, with housing 20
